Feeder // vacuum powder conveying system
Download the product sheet
SpecificationsFEEDER

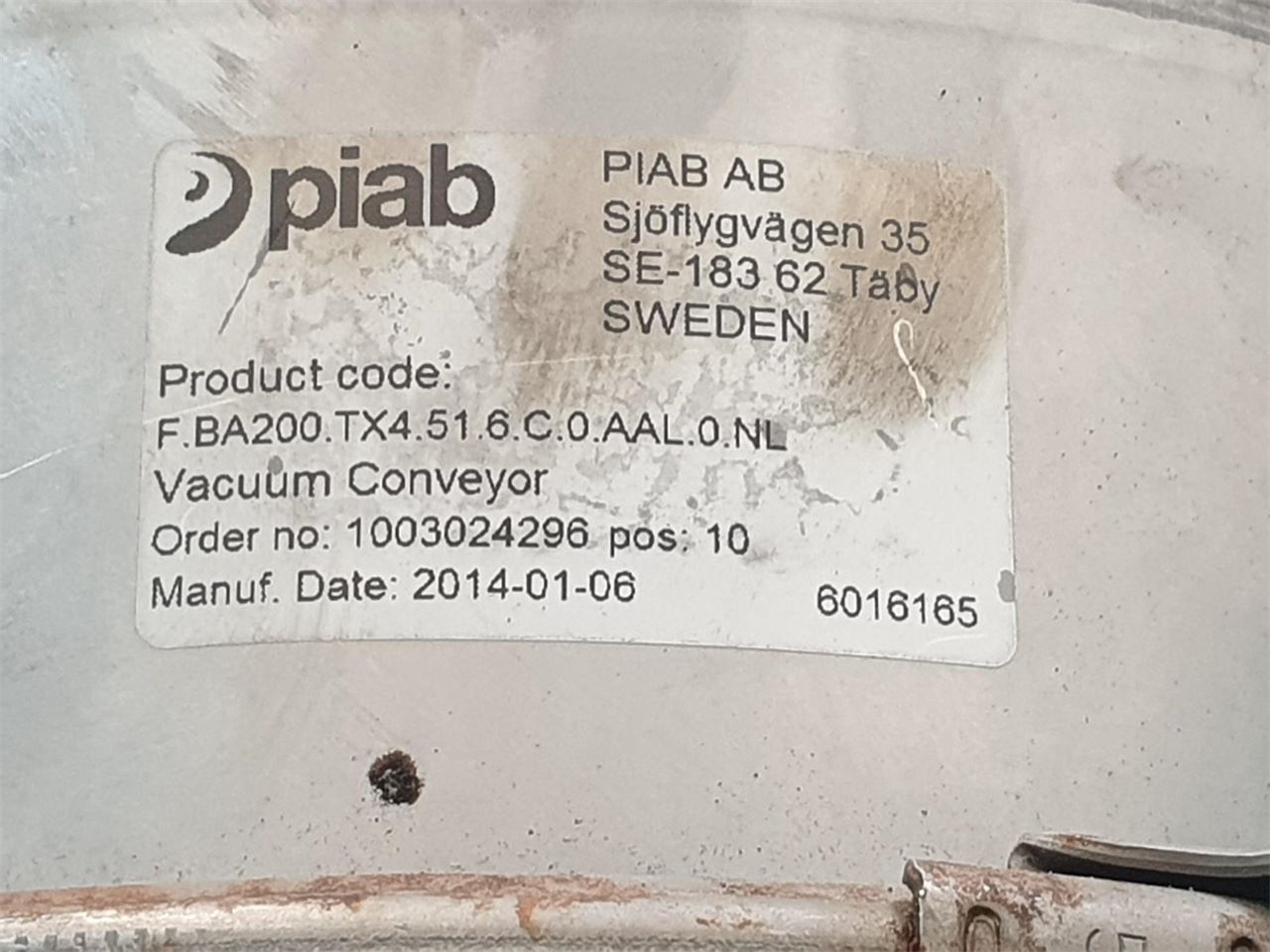

Brand : PIAB
Quantity : 1
Reference : 2433
Model : BA 200
Series n° : 1003024296
Year : 2014
Weight : 150 kg
Dimensions :
(L x W x H) 1.20 x 1.10 x 3.40 M
Share
Product Description

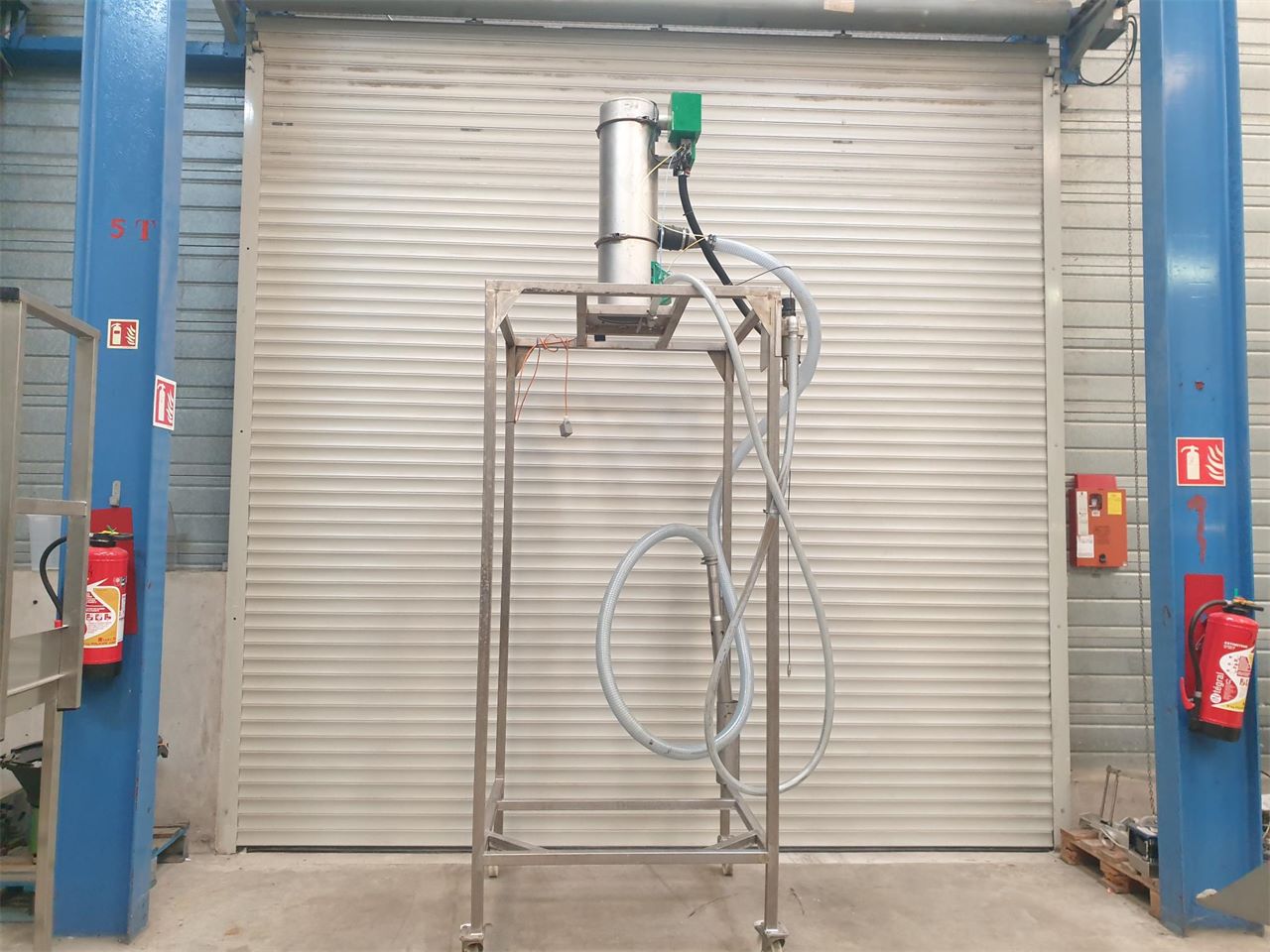

Vacuum powder transfer unit on a stainless steel frame with casters.
Equipped with:

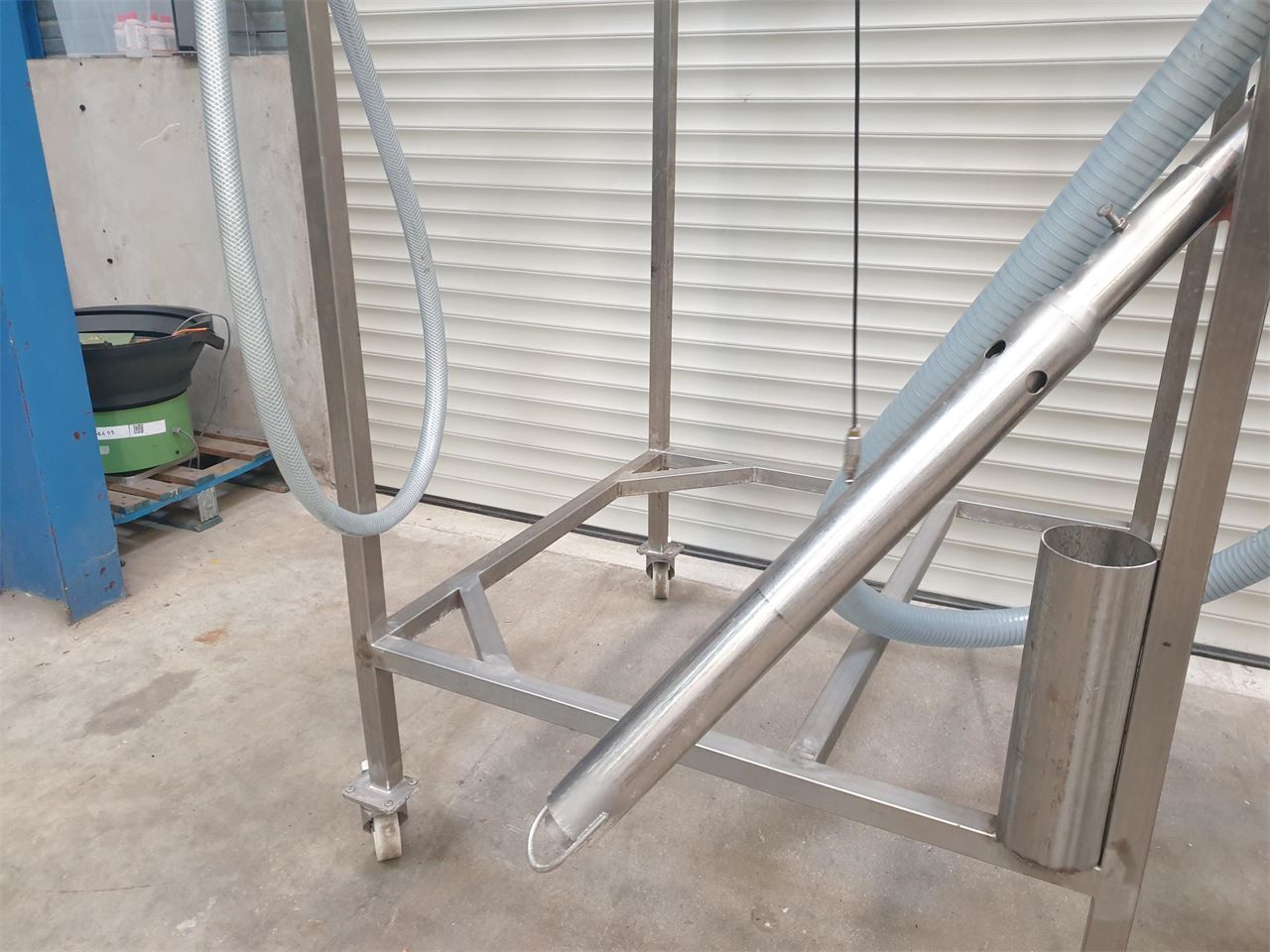

Powder suction port with a 50 mm diameter nozzle.

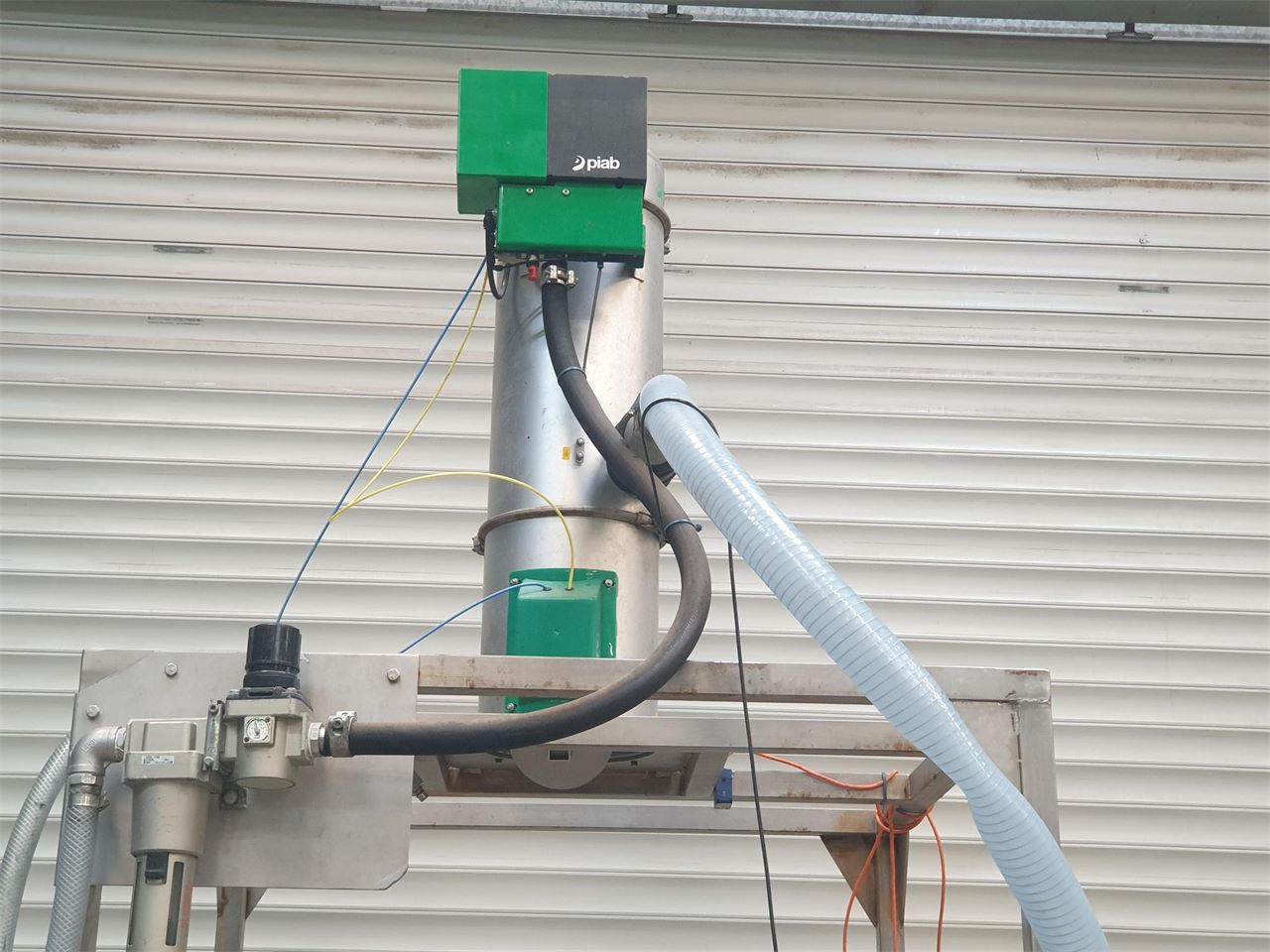

Filter hopper with a 200 mm diameter.
Loading and unloading hopper with a 200 mm diameter.
Opening/closing valve with a 145 mm diameter.
Powder discharge hopper with a 200 mm diameter reduced to 150 mm.
Fully pneumatic operation.
Vacuum via venturi.
Suction time adjustment knob.
Discharge time adjustment knob.
Time between cycles adjustment knob.
The frame can accommodate a container for collecting the powder.
Maximum container dimensions: 0.95 x 1.10 x 2.00 m
Capacity:
Maximum discharge height: 2 to 20 meters
Production: 1800 kg/hour between 2 and 5 meters
Production: 900 kg/hour between 5 and 10 meters
Production: 400 kg/hour between 10 and 20 meters
Maximum compressed air pressure: 6 bar
